TT-pumps in short

Our TT-Pumps form a complete range of compact and cost-effective dredging units. These pumps are equipped with a highly efficient single-walled dredge pump with a large spherical passage and outstanding suction properties.

Why choose our equipment?
  • versatile and flexible
  • high efficiency and multi-purpose use
  • wear resistant Maxidur®5 and Large Sphere passage
  • cost-effective
  • easy to handle, operate and maintain.

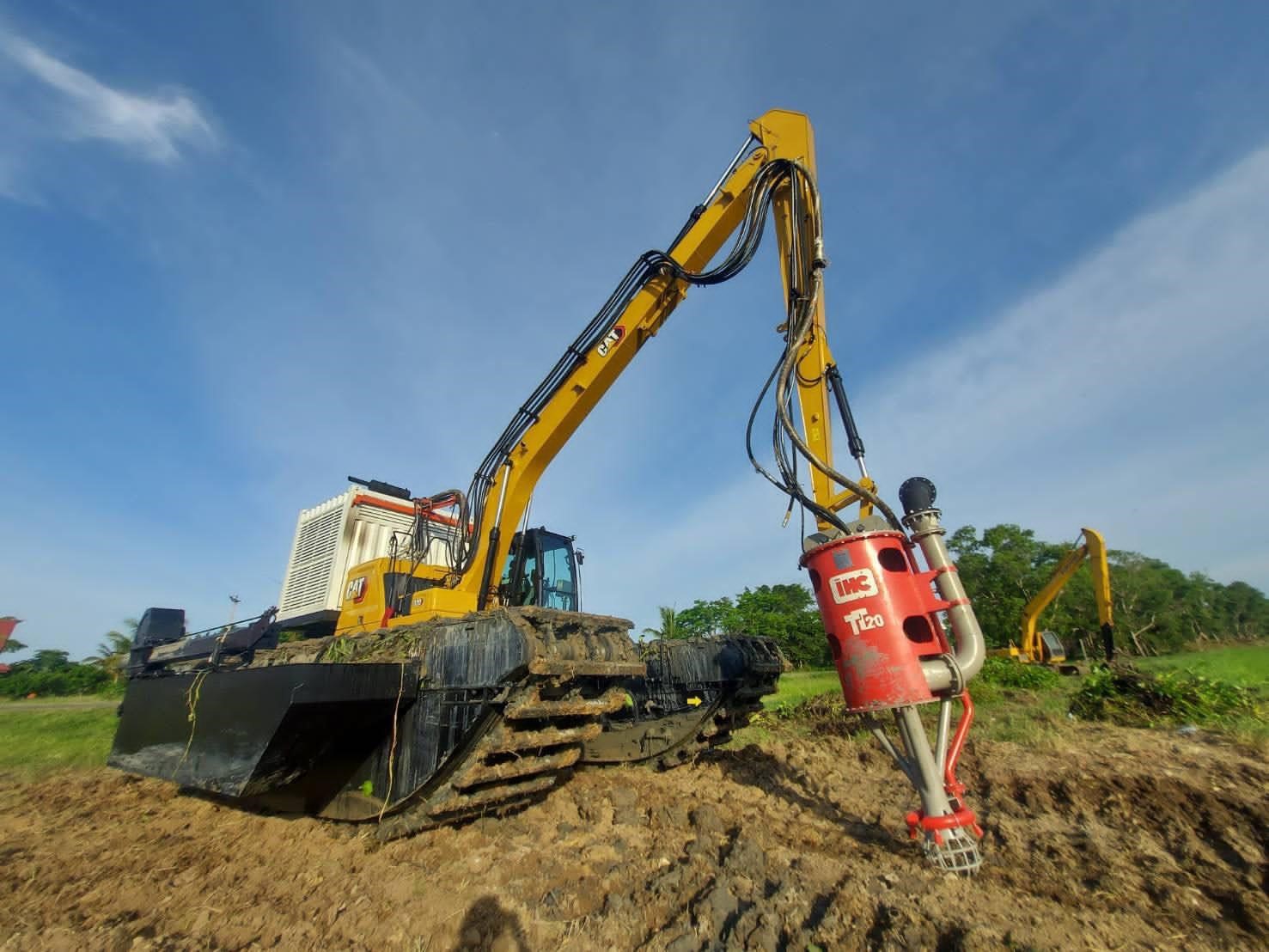

IHC TT-Pump attached to Amphibious Excavators for dredging in challenging areas like rivers, canals, swamps or marshlands.

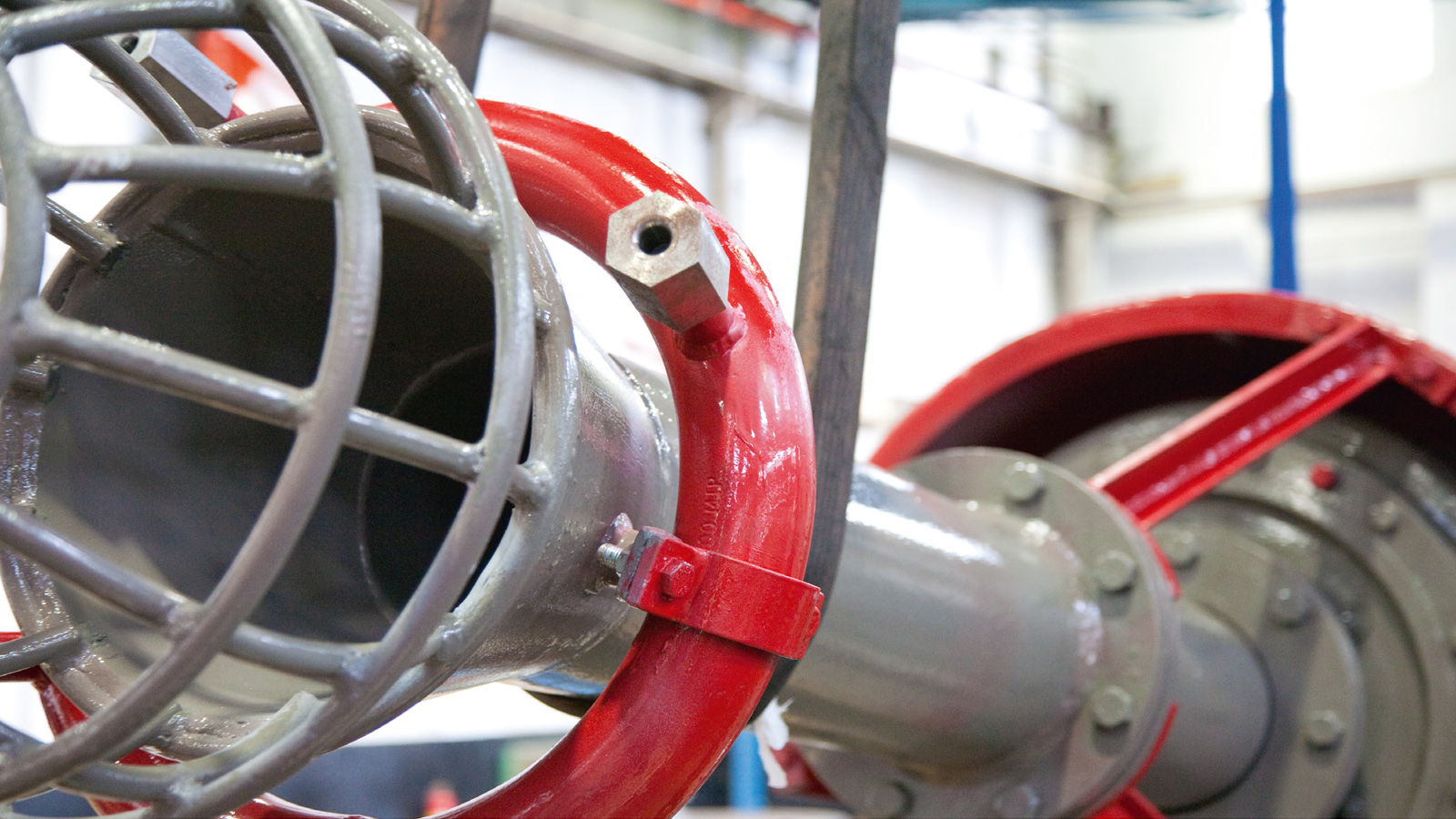

TT20 pump with sand production head
IHC TT-Pumps are modular and can be fitted with a sand production head and suspended from a pontoon platform.

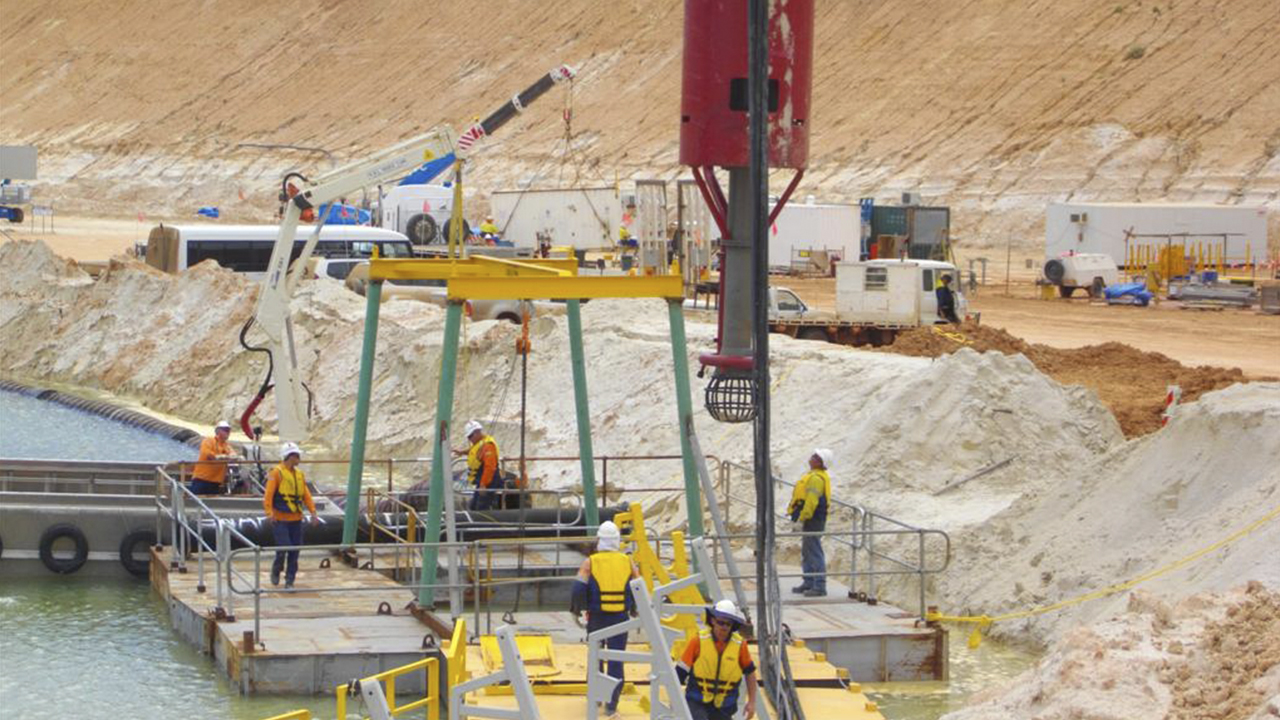

TT-Pump fitted with a sand production head and suspended from a pontoon platform.

Versatile submersible dredge pumps

TT-pumps are versatile submersible dredge pumps that can be operated from (amphibious) excavators, suspended from cranes or fitted to small pontoon vessels utilizing a vertical suspended system or ladder arrangement.

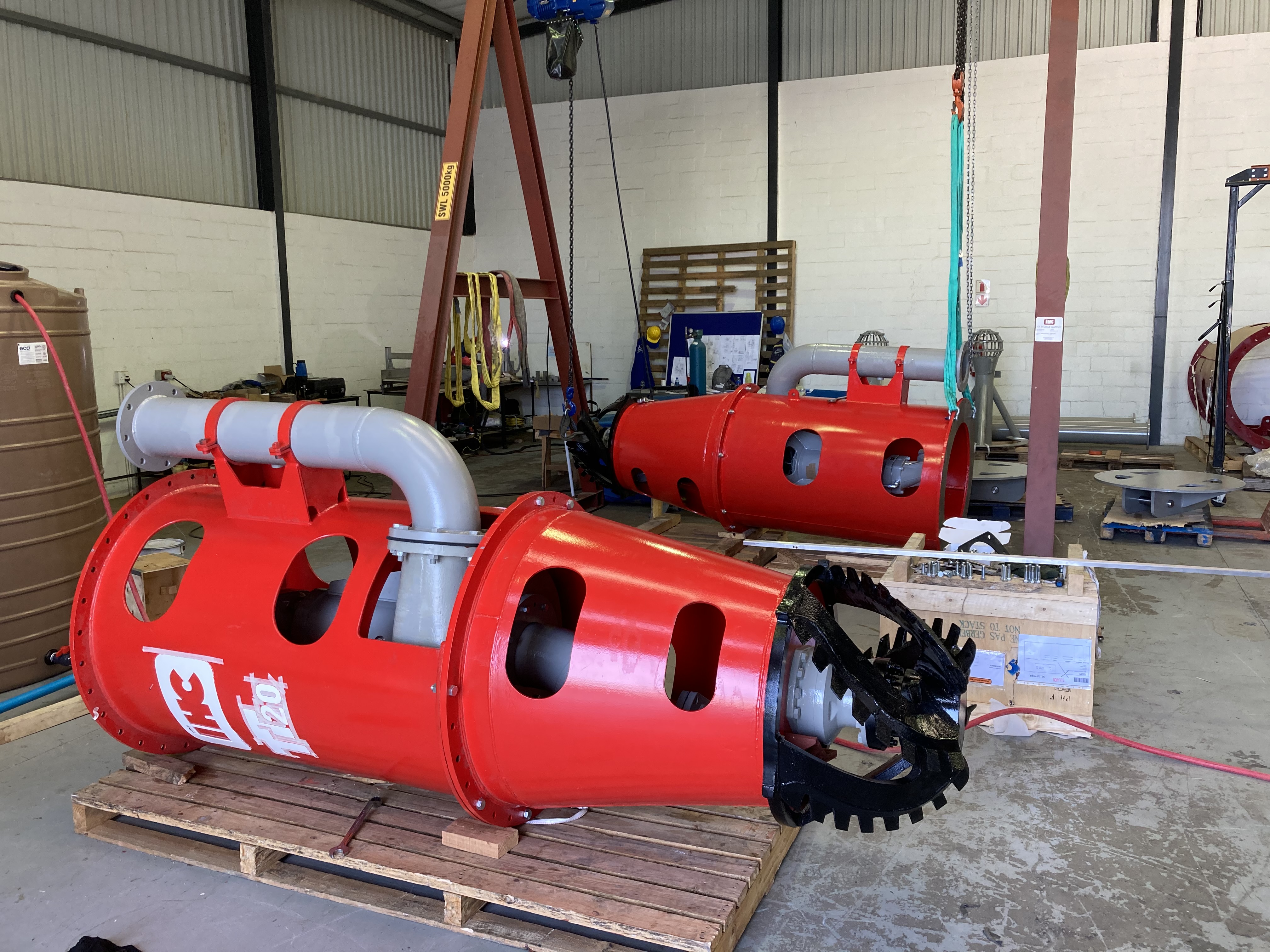

A TT-pump fitted with a cutter unit
TT-pump fitted with a cutter unit

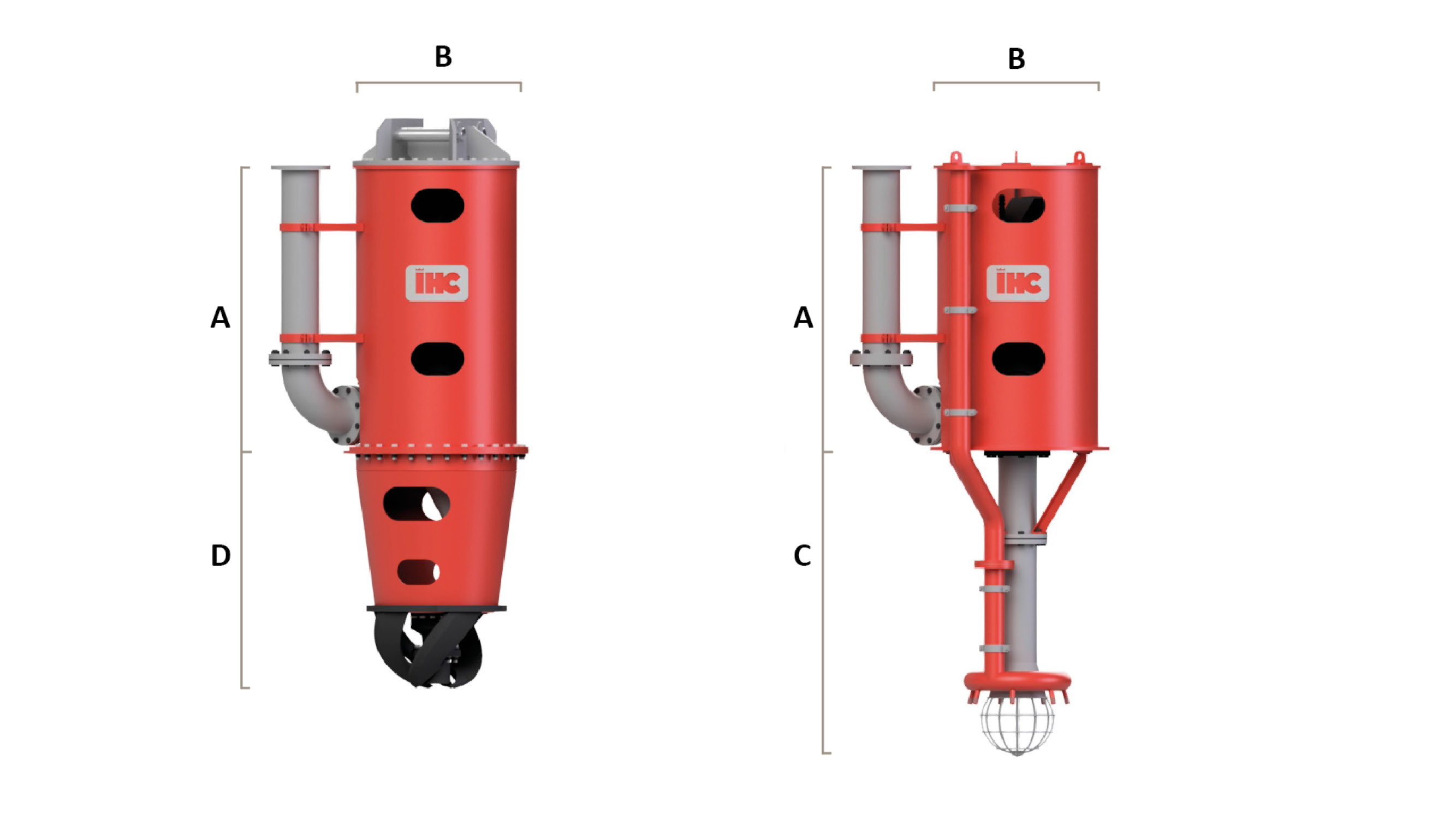

Dimensions of a TT-pump
TT-pump dimensions
Main specifications

TT Pump

TT 15-65

TT 20-95

TT 24-150

TT 30-250

TT 35-375

Performance



Max. mixture capacity (m3/h)

550

900

1,300

2,000

2,700

Max. pump power (kW)

65

95

150

250

375

Jetwater



Capacity (m3/h)

65

95

145

210

280

Dredge pump dimensions



Suction diameter (mm)

150

200

240

300

350

Discharge diameter (mm)

150

200

200

300

330

Ball passage (mm)

95

125

140

185

220

Weight



Pump base unit (kg)

1,015

1,575

2,435

4,055

4,210

Sand production head (kg)

105

185

290

480

605

Cutter unit (kg)

690

725

825

1,315

1,375

Optional suction heads

TT Pump

TT 15-65

 TT 20-95

TT 24-150

TT 30-250

TT 35-375

Cutter drive











Max. power at shaft (kW)

 13

 21

 25

 44

 46

Dimensions











A: Height pump base unit (mm)

1,415

 1,545

 1,755

 2,060

 2,240

B: Diameter pump base unit (mm)

 1,020

 1,135

 1,340

 1,540

 1,735

C: Height sand production head (mm)

 1,070

 1,400

 1,625

 1,780

 2,135

D: Height cutter unit (mm)

 1,450

 1,450

 1,550

 1,825

 1,960



More information?

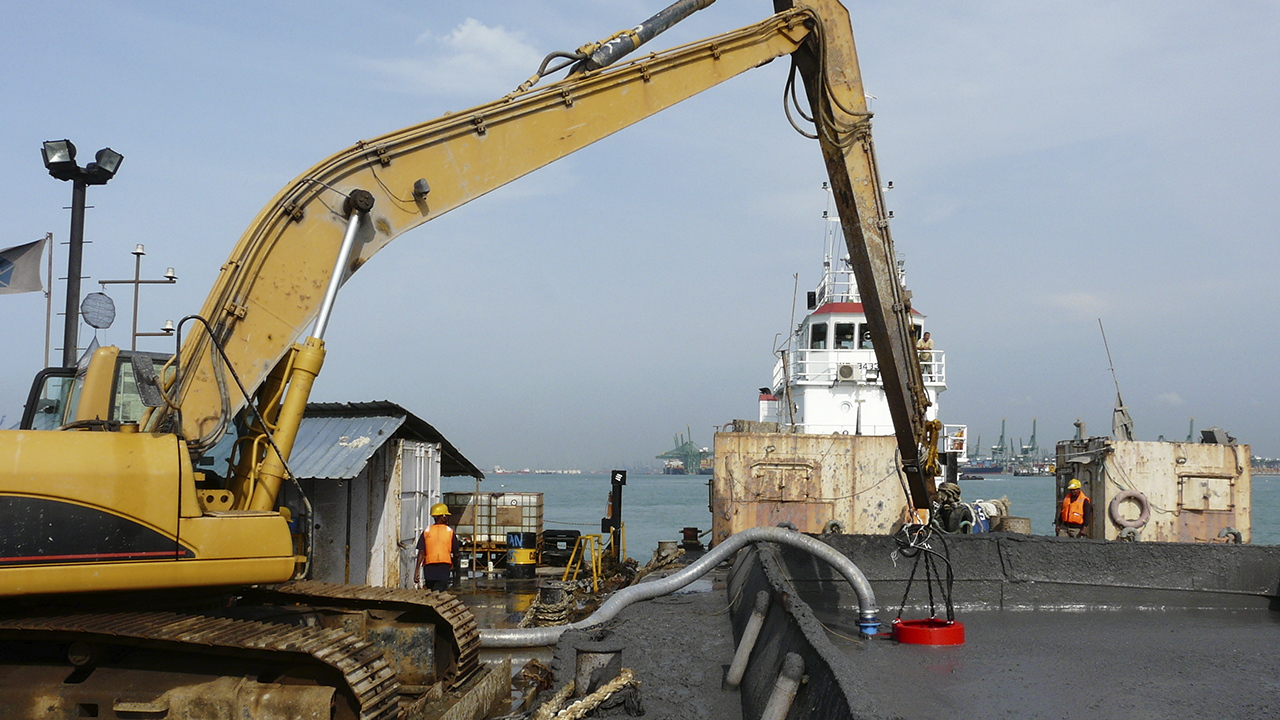

A TT-pump suspended from an excavator
