Why choose a IHC Dredging's gantry?

Robust design
Efficient assembly
Safe maintenance
Reliable drag head control
Customisable to customer needs

Robust design

Capable of lifting even the largest trailing suction pipes with submersible dredge pumps, our gantries are built to safely withstand challenging dredging conditions.

Efficient assembly

Our gantries are designed for easy integration and installation on board. They can be supplied fully assembled, complete with fenders, lighting, lubrication lines and sensors.

Safe maintenance

Our gantries are designed to require minimal maintenance and ensure safe and easy inspection. This reduces overall operating costs and results in reliable equipment and maximum uptime.

Reliable drag head control

Our gantries provide reliable control of the drag heads, in a horizontal position to remove the right amount of material, and in a vertical position to remove enough, but not too much, which is critical to an effective dredging operation.

Customisable to customer needs

We offer custom-built gantries to meet the requirements of specialised trailing suction pipes, such as heavy submersible dredge pumps on mega dredgers, or challenging on-board positioning.

Types of gantries

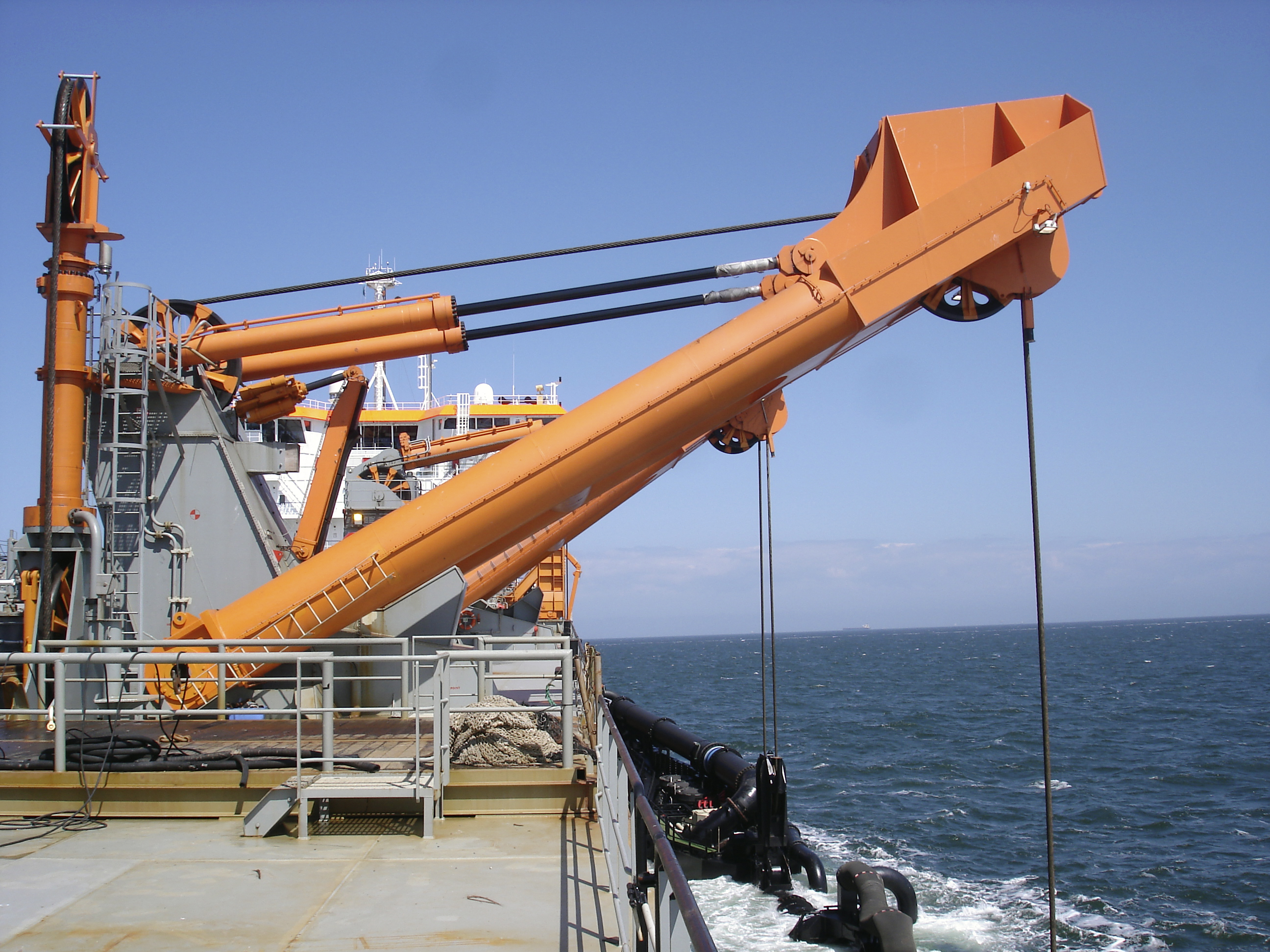

A-frame gantries

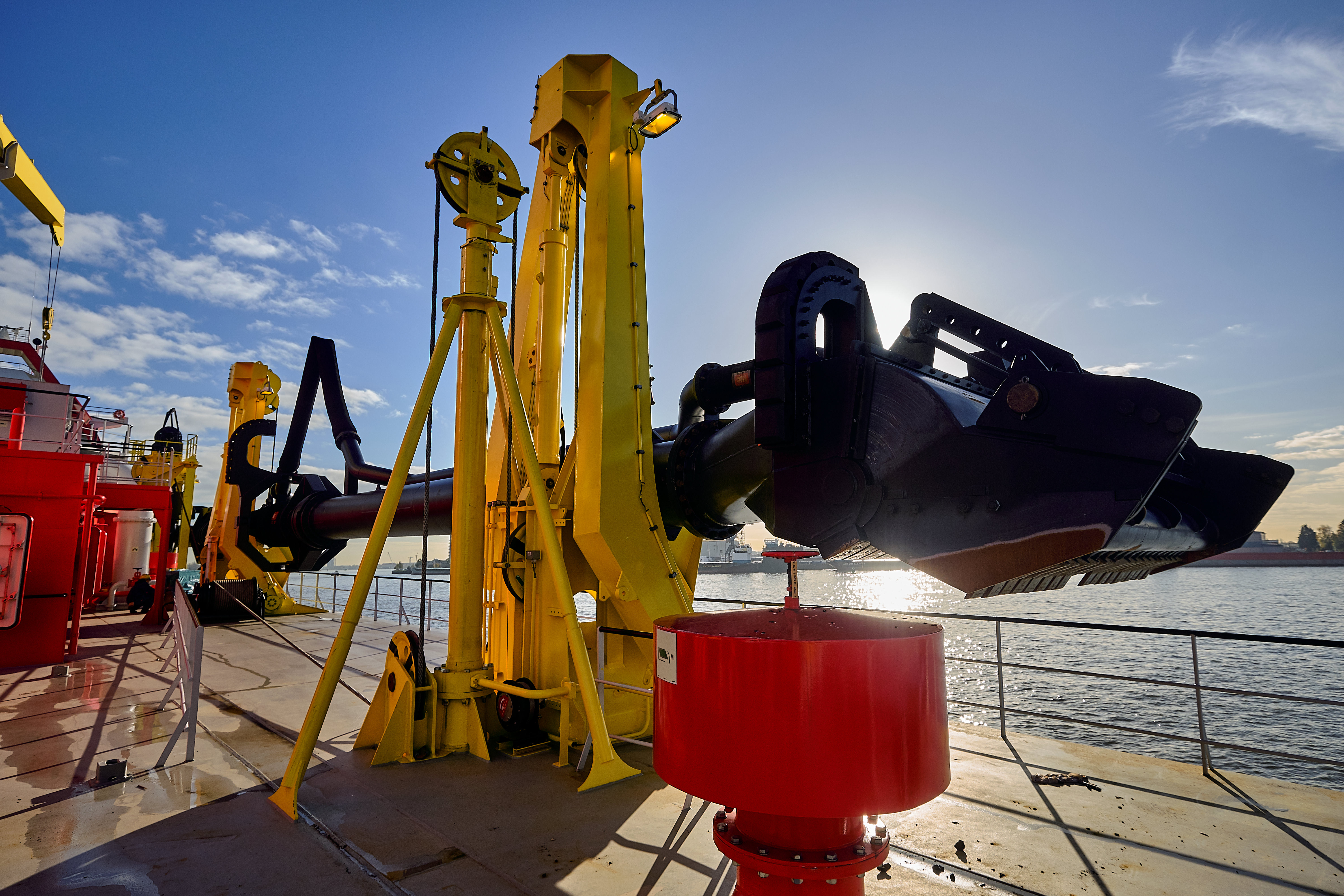

Drag head and intermediate gantry, with integrated fender and suction pipe support and optional features such as buffers and swell compensators.
Trunnion gantries

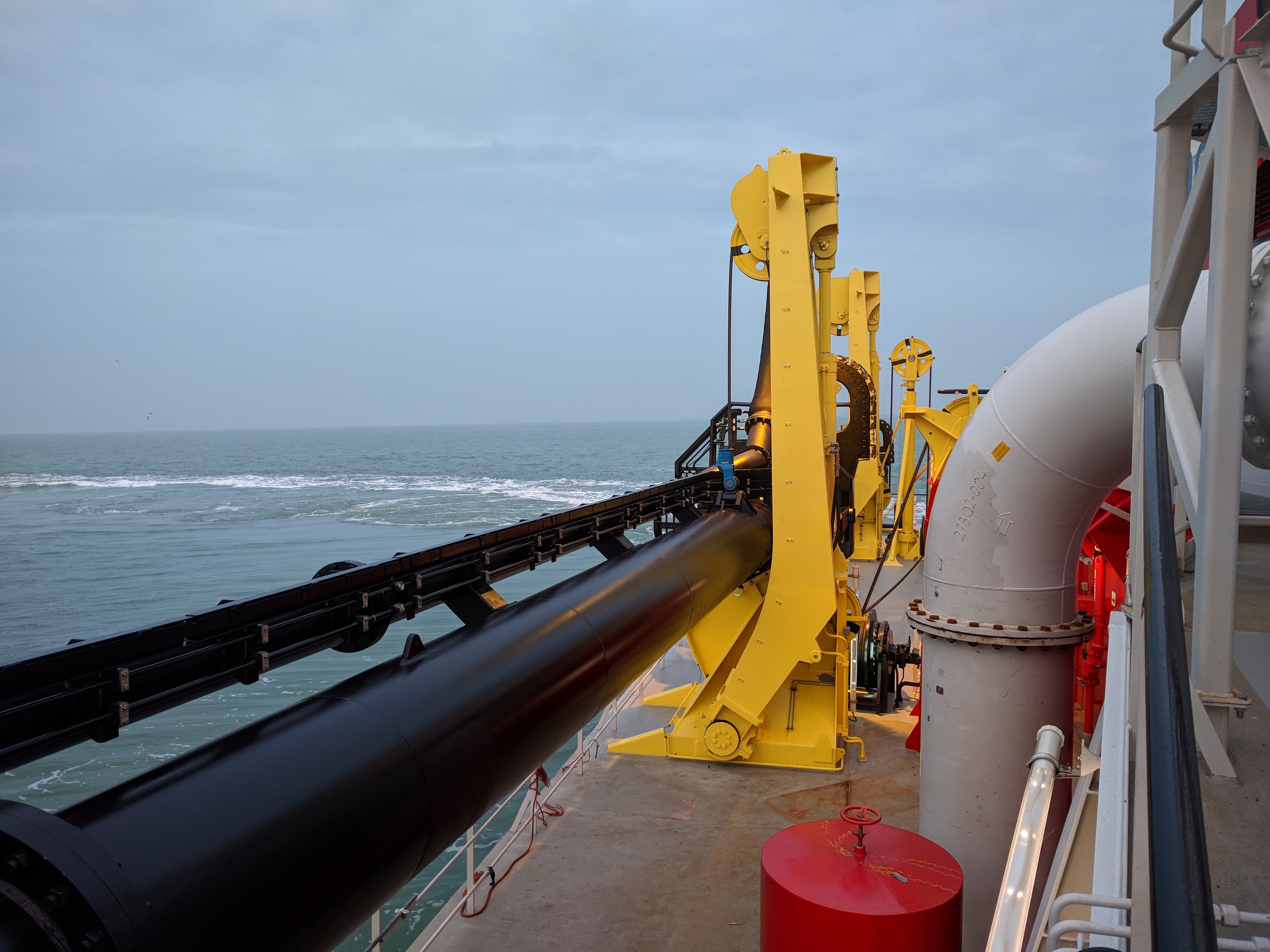

Parallel and wagon-type gantries guide the trailing suction pipe connection (sliding piece) between both operational and storage locations.

Features

Hydraulic cylinders for accurate and controlled movement of the gantries with the hoisted suction pipe.

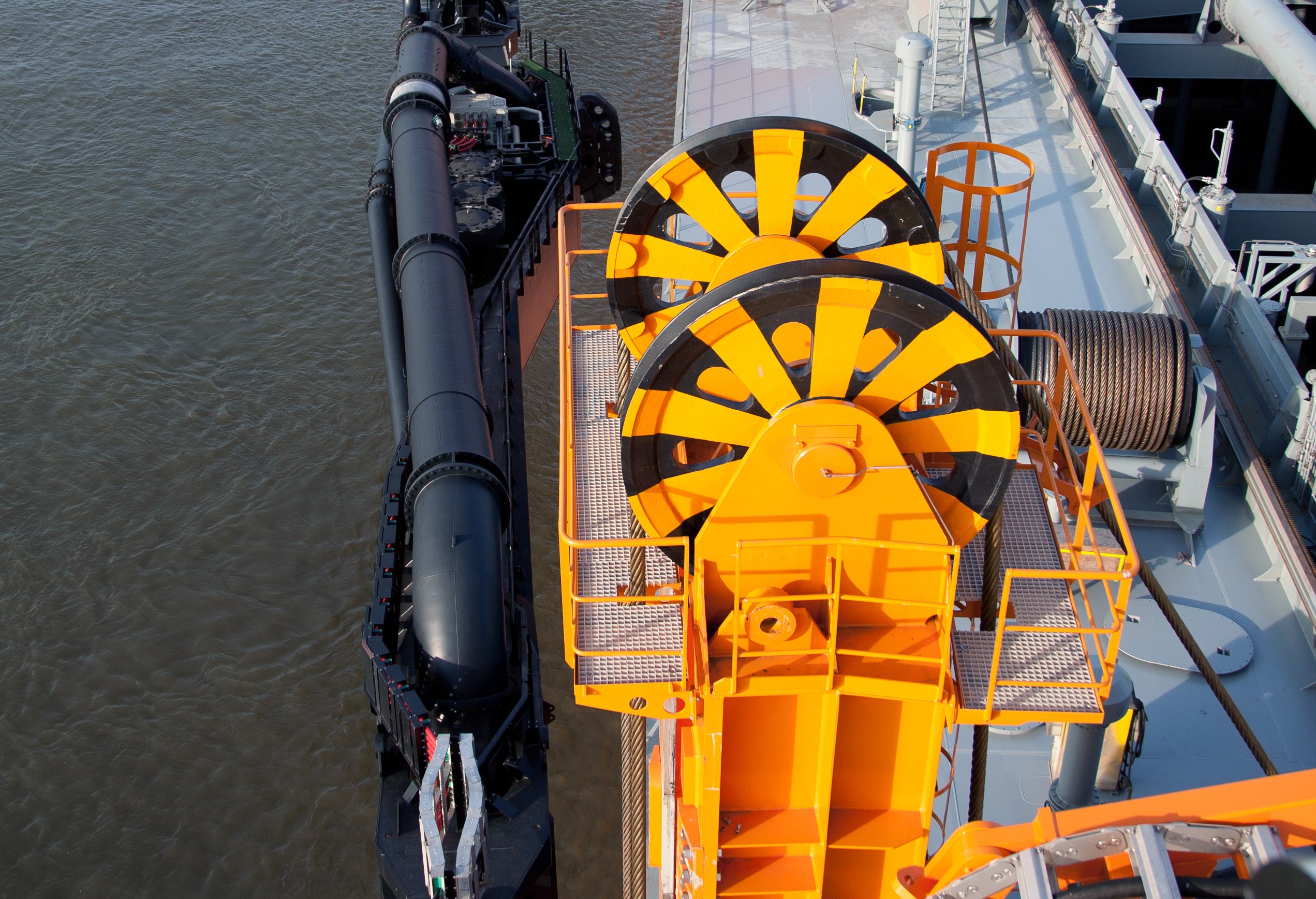

Wire sheaves are suitable for the selected wire rope and fitted with bearings to ensure smooth hoisting operations.

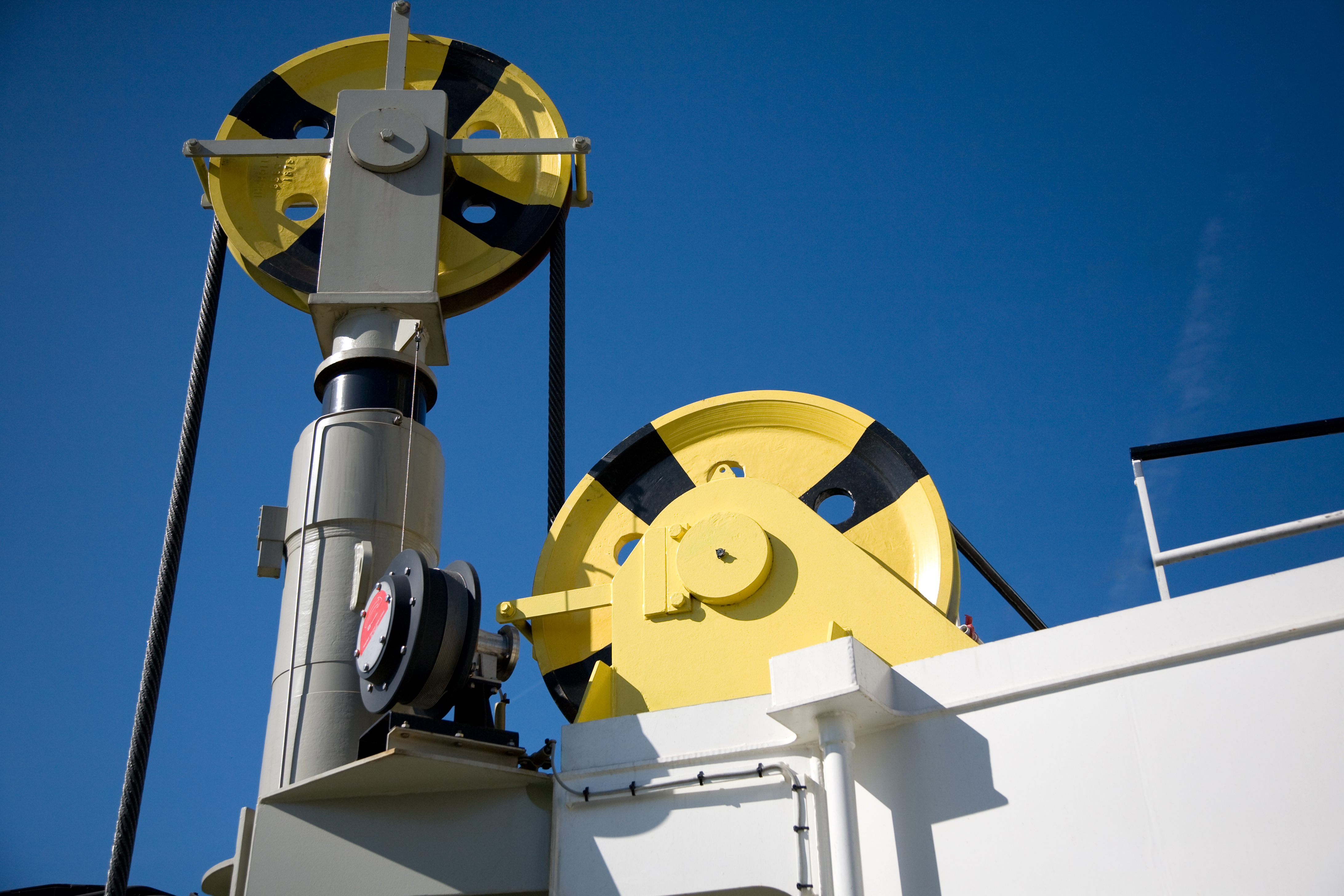

Swell compensators

Working in close harmony with the draghead gantries, our swell compensators optimise the drag head's contact with the seabed to ensure high production. At the same time, they compensate for vessel motion and seafloor level differences.
