Our telecoms plough launch and recovery system features a 30t SWL A-frame designed to interface with the Royal IHC Fibre Optic cable plough and handle it over its range of operation for safe deployment, towing and recovery. This is a wide angle A-Frame which incorporates an adjustable towing position designed to cater for a wide range of cable lay deck layouts, the A-frame can also be used with a range of 3rd party ploughing systems and is suitable for use in H=3.5m. The hydraulic tow winch has render capabilities and can achieve a maximum load of 80t which allows the system to deal with any ‘snag’ event whilst towing.

  • operator friendly
  • fewer people required to gain line of sight of moving equipment
  • high speed winch rope pay out if plough ever becomes snagged on sea bed floor
  • adjustable angle to ensure wire rope always contacts the roller at same point
  • suitable to range to vessels, irrespective of where the tow winch is situated.

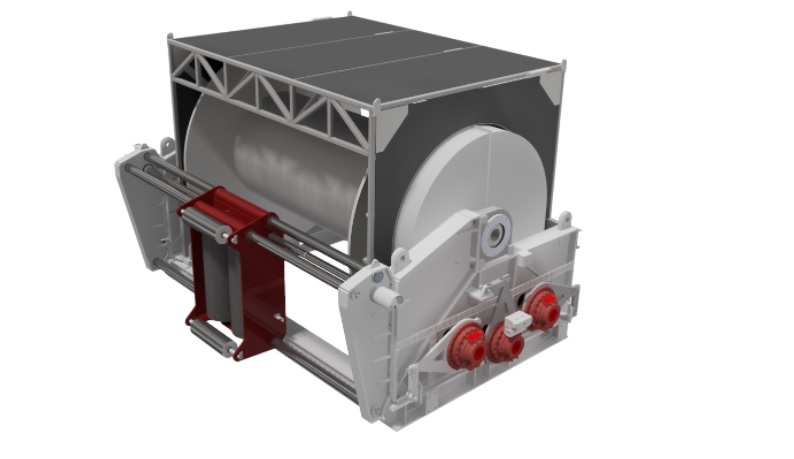

grey render of lift/tow winch

Our offer

  • efficient, lightweight portal frame
  • axisymmetric design to achieve wide angle (155 degree operating arc)
  • launch and recovery of subsea equipment can be operated via a wireless pendant
  • adjustable inboard towing angle
  • ability to fleet up to +-2.6m from centreline.

The telecoms LARS can host optional extras such as load monitoring, extendable A-frame width, latching and inclusion of a wireless control pendant for mobile operation.

More information?

  • Robert Haylock

    Robert
    Haylock

    Sales manager subsea vehicles and launch & recovery systems

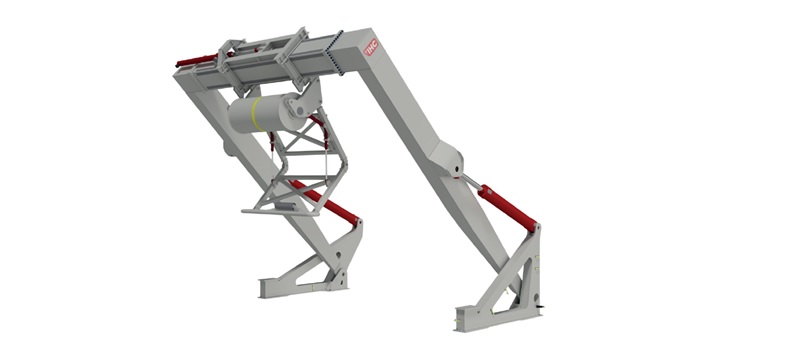

telecoms lars render
